The Battery R&D Playbook: Treating Research and Development as Margin Protection, Not a Cost CenterBattery R&D Playbook: R&D को Cost Center नहीं, Margin Protection बनाएँ

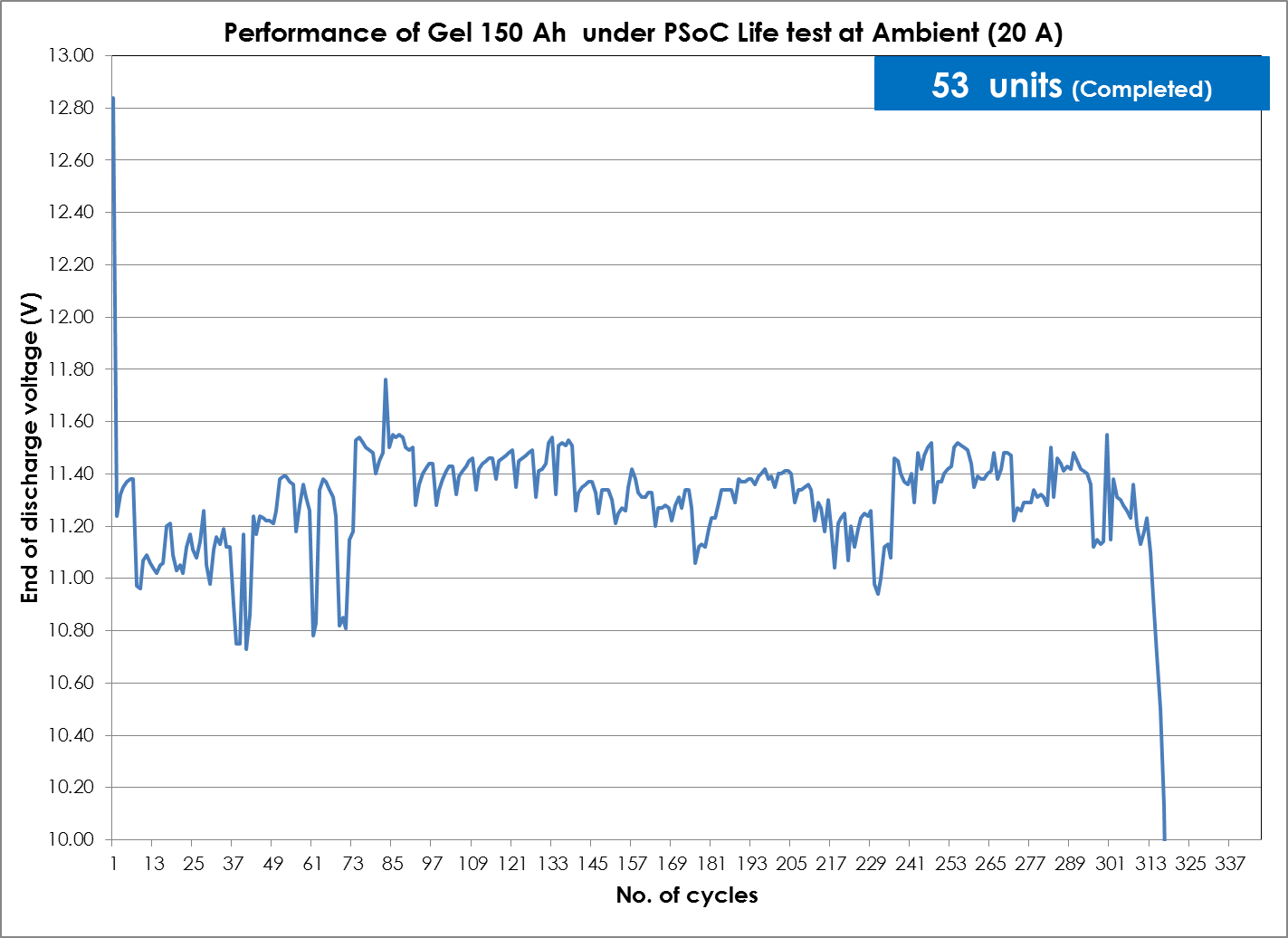

PSoC life test — Gel 150 Ah at ambient, 20 A discharge: R&D that measures cycle life, not opinionsPSoC life test — Gel 150 Ah, ambient, 20 A: R&D जो cycle life मापता है, राय नहीं

For MSMEs in battery and power storage, R&D is often treated as an expensive luxury for corporate giants. Many plants run static, decades-old recipes for paste mixing, grid casting, and plate curing — and accept high warranty returns and thin margins as "the cost of doing business."Battery और power storage में MSMEs अक्सर R&D को सिर्फ बड़े corporates का महंगा खर्च मानते हैं। कई plants paste mixing, grid casting, plate curing के पुराने static recipes पर चलते हैं — और ऊँचे warranty returns व पतली margins को "business की लागत" मान लेते हैं।

This playbook is the companion deep-dive to the live MSME Battery Engineering Playbook (shop-floor execution: bottom bridges, curing, packed density). Here we treat the multi-year R&D program itself as a machine for protecting operational margins — lab tests, chemical modifications, and design engineering that slash warranty, cut raw-material cost, and extend cycle life. Training that carries those wins to every shift is in the Shop-Floor Training Playbook.यह playbook live MSME Battery Engineering Playbook का companion deep-dive है (shop-floor execution: bottom bridges, curing, packed density)। यहाँ multi-year R&D program खुद operational margins बचाने की मशीन है — lab tests, chemical modifications, design engineering जो warranty काटें, raw-material cost घटाएँ, cycle life बढ़ाएँ। हर shift तक पहुँचाने वाली training Shop-Floor Training Playbook में है।

1. Engineering Out Field Failures Through Structural Design1. संरचनात्मक डिज़ाइन से Field Failures बाहर निकालना

Small mechanical flaws on the shop floor compound into catastrophic warranty returns in the field. Su-Kam's R&D division attacked structural defects with precise geometric interventions.Shop floor की छोटी mechanical खामियाँ field में catastrophic warranty returns बन जाती हैं। Su-Kam की R&D ने structural defects पर precise geometric interventions से वार किया।

• Bottom bridge redesign: Flat-topped bridges on 150 Ah and 200 Ah tubular lines let shed active material pile and short the cell. Projected, ribbed designs gave that material a place to settle — warranty returns from bottom shorts driven toward zero.
• Pole and strap strengthening: Higher poles (to prevent cold fusion), wider straps, and larger intercell weld (ICW) hole diameters on tractor and truck batteries raised weld strength and cut terminal disconnection under high Cold Cranking Amps (CCA). Lab checks held ICW hole diameter near 16 mm when strap mass was later reduced.
• Reverse proofing: Visual and mechanical alignment safeguards on 2.3 mm spine designs stopped cell-reversal errors during assembly.

• Bottom bridge redesign: 150 Ah और 200 Ah tubular लाइनों पर flat-topped bridges shed active material जमा कर cell short करते थे। Projected, ribbed designs ने material को सुरक्षित बैठने की जगह दी — bottom short warranty returns लगभग शून्य की ओर।
• Pole और strap strengthening: ऊँचे poles (cold fusion रोकने), चौड़े straps, और tractor/truck batteries पर बड़े ICW hole diameters — weld strength बढ़ी, high CCA पर terminal disconnection घटी। बाद में strap mass घटाने पर भी lab ने ICW hole ~16 mm बनाए रखा।
• Reverse proofing: 2.3 mm spine designs पर visual और mechanical alignment safeguards ने assembly में cell-reversal errors रोकीं।

Projected / ribbed bottom bridge geometry — shed PAM settles between ribs instead of bridging platesProjected / ribbed bottom bridge — shed PAM ribs के बीच बैठता है, plates bridge नहीं करता

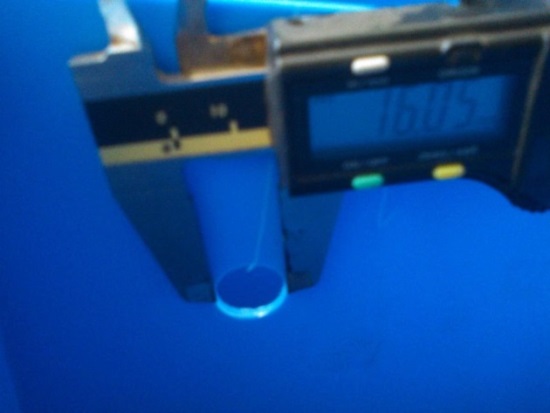

ICW hole held at ~16 mm — structural integrity checked while strap mass was value-engineeredICW hole ~16 mm — strap mass value-engineer करते हुए भी structural integrity जाँची गई

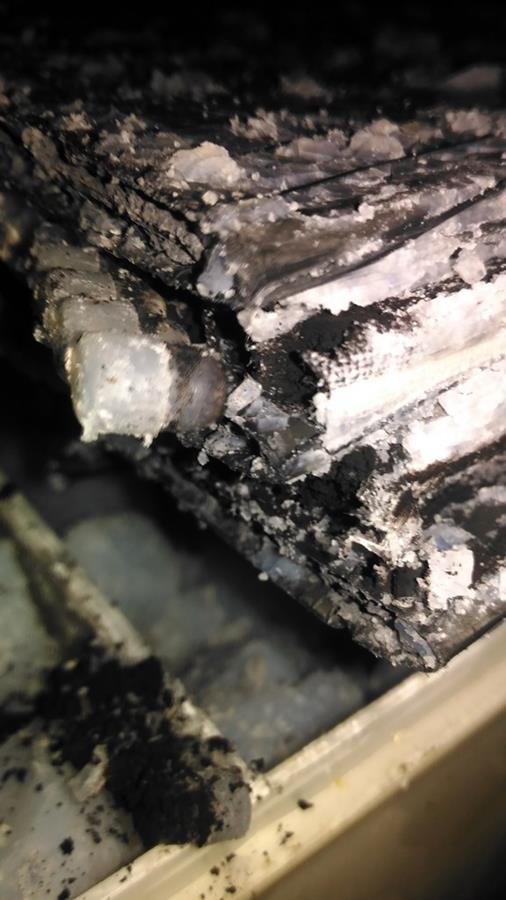

Teardown after life test — corrosion and dry-out modes that R&D must name before fixingLife test के बाद teardown — corrosion और dry-out modes जिन्हें R&D नाम देकर ठीक करता है

2. Chemical and Process Innovations for Battery Life2. Battery Life के लिए Chemical और Process Innovations

Longevity is locked in at paste preparation and curing — not only at formation.Longevity paste preparation और curing में लॉक होती है — सिर्फ formation में नहीं।

• Packed density: Raising positive active material (PAM) packed density from about 3.5–3.6 g/cc toward 3.8–3.9 g/cc cut shedding and gauntlet ballooning near end of life.
• Red lead reduction & sodium sulphate: Cutting red lead from flat-plate positive paste (with sodium sulphate aiding electrochemical formation in the electrolyte) improved cohesion, reduced mossing, and unlocked large cost savings.
• Pickling and curing: Shortening pickling soak from 6 hours to 1 hour — with acid SG and oxide composition retuned — lifted shop-floor productivity by about 83% while limiting over-expansion and plate sulphation. High-temp / high-RH curing for tetrabasic lead sulphate (4BS) is the shop-floor twin of this chemistry (see the engineering playbook).
• Hicharge separators: Moving from older diagonal-rib separators to Hicharge multi-rib profiles cut water loss by about 24% and improved puncture resistance.

• Packed density: PAM packed density ~3.5–3.6 g/cc से ~3.8–3.9 g/cc की ओर — shedding और gauntlet ballooning घटे।
• Red lead कमी और sodium sulphate: Flat-plate positive paste से red lead घटाना (electrolyte में sodium sulphate से electrochemical formation) — cohesion बेहतर, mossing कम, बड़ी cost बचत।
• Pickling और curing: Pickling soak 6 घंटे से 1 घंटा — acid SG और oxide composition समायोजित — shop-floor उत्पादकता ~83% ऊपर, over-expansion और plate sulphation नियंत्रण में। 4BS के लिए high-temp / high-RH curing इसी chemistry का shop-floor जुड़वाँ है (engineering playbook देखें)।
• Hicharge separators: पुराने diagonal-rib से Hicharge multi-rib — water loss ~24% कम, puncture resistance बेहतर।

SEM · crystal morphology under controlled curing — chemistry you can seeSEM · controlled curing के तहत crystal morphology — दिखने वाली chemistry

SEM · larger, structured particles associated with life-oriented curing regimesSEM · life-oriented curing से जुड़े बड़े, structured particles

Hicharge multi-rib separator geometry — water loss and puncture as R&D variablesHicharge multi-rib separator — water loss और puncture R&D variables

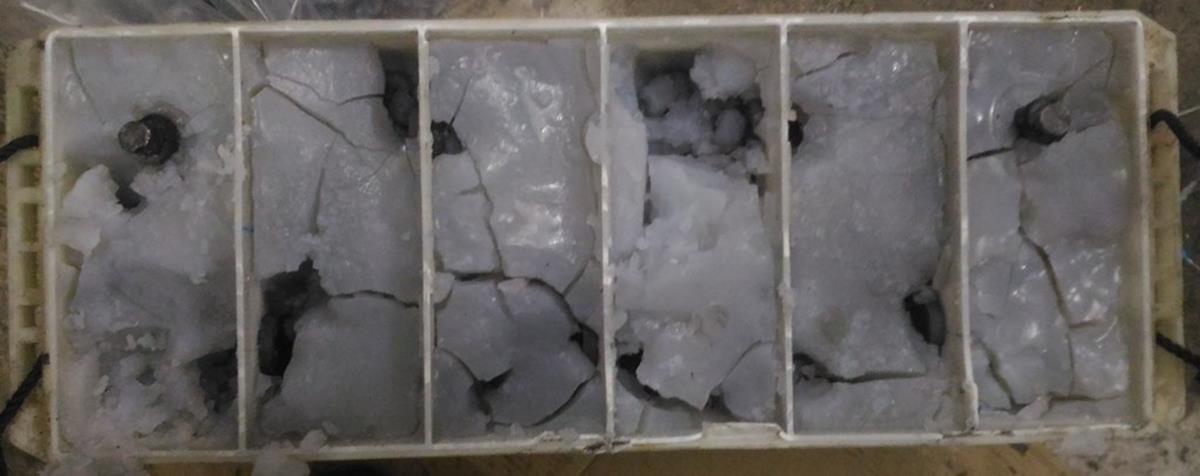

Gel crack after dry-out — why water-loss and separator work belong in the same R&D backlogDry-out के बाद gel crack — water-loss और separator एक ही R&D backlog में क्यों हों

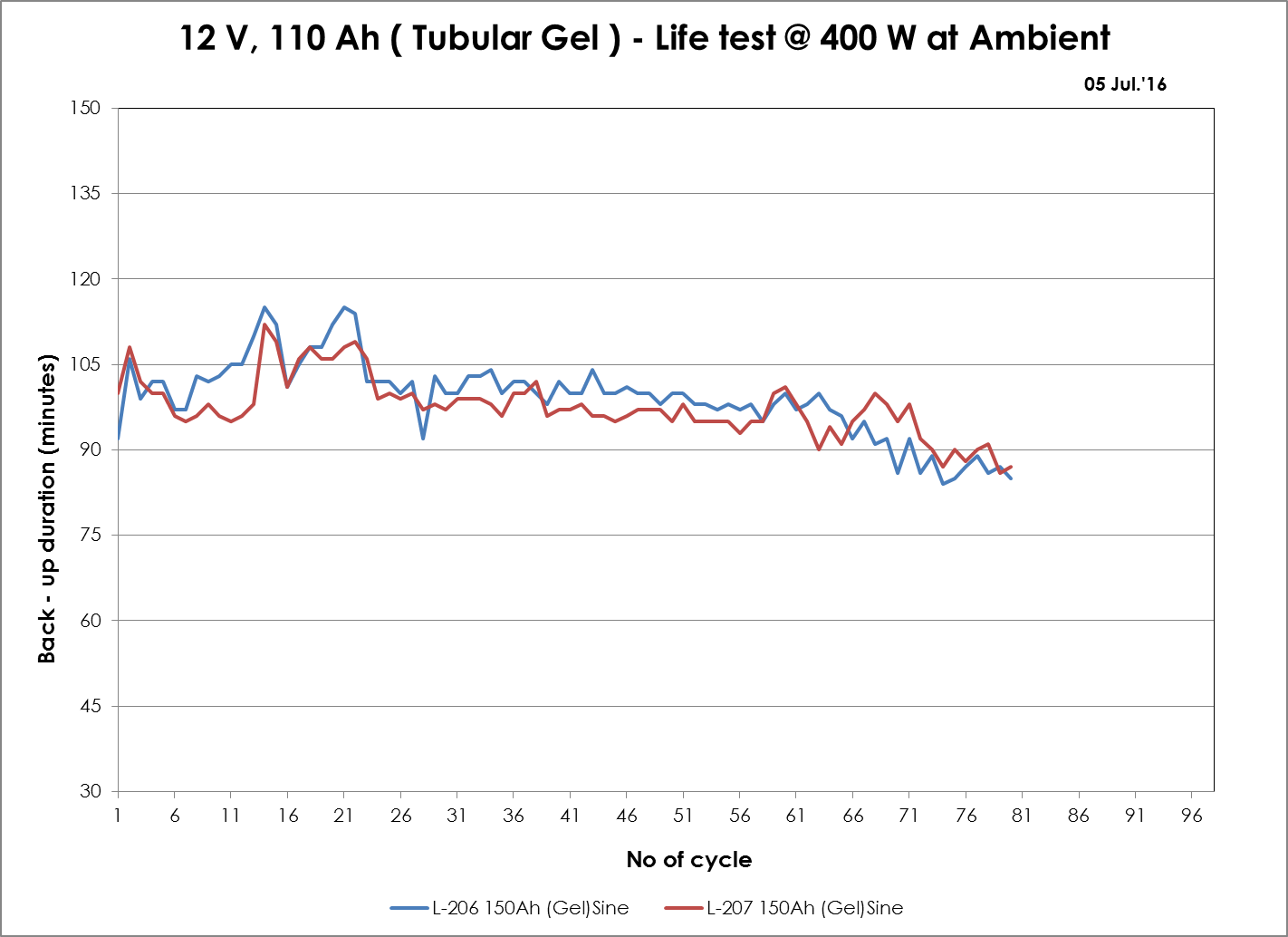

Inverter life test @ 400 W — backup minutes vs cycle count; R&D closes the loop with dataInverter life test @ 400 W — backup minutes बनाम cycles; R&D data से loop बंद करता है

3. Value Engineering Without Compromising Quality3. गुणवत्ता से समझौता किए बिना Value Engineering

R&D is not only "make it better." In a hyper-competitive MSME market it must also make the product economically viable.R&D सिर्फ "बेहतर बनाओ" नहीं है। Hyper-competitive MSME market में product को economically viable भी बनाना है।

• Supplier optimization: Qualifying alternate high-grade sources for barium sulphate, sodium sulphate, and carbon black delivered cost reductions of up to ~78% on selected inputs — without relaxing lab specs.
• 2.3 mm spines: Moving traditional 3.0 mm spine models to 2.3 mm configurations across solar and tubular families yielded direct material savings of roughly 2.3% to 14.6% per battery, with reverse-proofing built into the thinner spine program.
• Strap weight reduction: On IT 400 / IT 500 lines, strap width moved from 32 mm to 28 mm (about 113 g → 76 g per strap in the Jul ’16 register) — roughly 370 grams of lead alloy saved per battery — while keeping ICW hole diameter unchanged and switching group burning from 3-cell to 6-cell jigs.

• Supplier optimization: Barium sulphate, sodium sulphate, carbon black के alternate high-grade sources — select inputs पर ~78% तक लागत कट, lab specs ढीले किए बिना।
• 2.3 mm spines: Solar और tubular परिवारों में 3.0 mm से 2.3 mm — प्रति battery ~2.3% से 14.6% material बचत, और thinner spine program में reverse-proofing।
• Strap weight reduction: IT 400 / IT 500 पर strap width 32 mm से 28 mm (Jul ’16 register: ~113 g → 76 g) — प्रति battery ~370 g lead alloy बचत — ICW hole diameter वही, group burning 3-cell से 6-cell jigs।

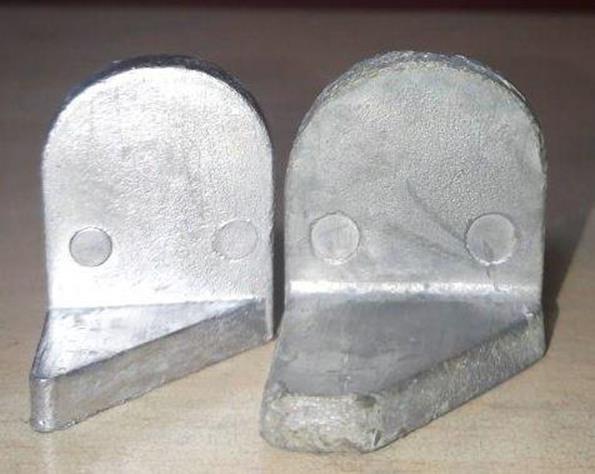

Strap geometry iteration — mass out, weld path and hole diameter protectedStrap geometry iteration — mass बाहर, weld path और hole diameter सुरक्षित

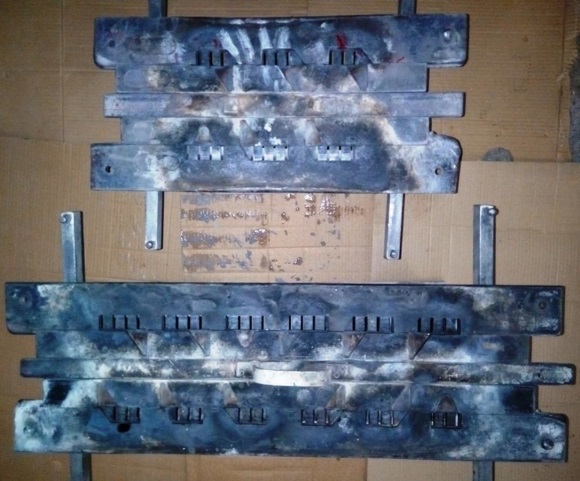

Jig / mold evolution — one comb & height-adjustable jig for multiple battery typesJig / mold evolution — एक comb और height-adjustable jig कई battery types के लिए

The Core Message for MSME FoundersMSME Founders के लिए मुख्य संदेश

"R&D is not a cost center; it is your ultimate margin protector. Small chemical and structural adjustments on the drawing board save lakhs in warranty claims and raw material waste on the shop floor." "R&D कोई खर्च केंद्र नहीं है; यह आपके मुनाफे की सुरक्षा का सबसे बड़ा हथियार है। Drawing board पर किए गए छोटे रासायनिक और संरचनात्मक सुधार shop floor पर warranty दावों और कच्चे माल की बर्बादी में लाखों बचाते हैं।"

1. Budget the lab as a warranty reserve: Every rupee in structured R&D should map to a failure mode you already pay for in returns.
2. Register geometry and chemistry changes: Date, model, before/after, status — the Jul ’16 strap register style.
3. Close the loop with life tests: PSoC, inverter load, teardown photos — opinions do not ship.
4. Hand execution to the plant: Companion playbooks for engineering and training turn R&D into every shift.

1. Lab को warranty reserve की तरह बजट कीजिए: Structured R&D का हर रुपया उस failure mode से जुड़े जिसे आप returns में पहले से चुका रहे हैं।
2. Geometry और chemistry changes register कीजिए: Date, model, before/after, status — Jul ’16 strap register शैली।
3. Life tests से loop बंद कीजिए: PSoC, inverter load, teardown photos — राय ship नहीं होती।
4. Execution plant को सौंपिए: Engineering और training companion playbooks R&D को हर shift बनाते हैं।
